Product Description
MODELUSAGE LOAD(T)PARTSOPEN±20GRADEMGRADEPABCDEFRHLCLOSE±20M161.251.719.522.540.516163236180181365545M181.72.119.5264518183742.5180205.5415595M202.12.725294920204045199213430630M222.73.52530.553.522···
PRODUCTS

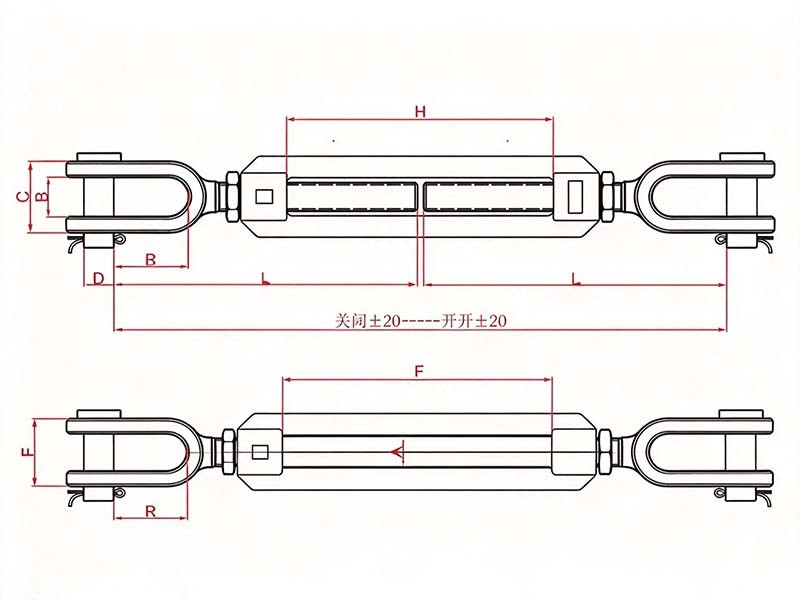

| MODEL | USAGE LOAD (T) | PARTS | OPEN ±20 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GRADE M | GRADE P | A | B | C | D | E | F | R | H | L | CLOSE ±20 | ||
| M16 | 1.25 | 1.7 | 19.5 | 22.5 | 40.5 | 16 | 16 | 32 | 36 | 180 | 181 | 365 | 545 |
| M18 | 1.7 | 2.1 | 19.5 | 26 | 45 | 18 | 18 | 37 | 42.5 | 180 | 205.5 | 415 | 595 |
| M20 | 2.1 | 2.7 | 25 | 29 | 49 | 20 | 20 | 40 | 45 | 199 | 213 | 430 | 630 |
| M22 | 2.7 | 3.5 | 25 | 30.5 | 53.5 | 22 | 22 | 47.5 | 51.3 | 199 | 233 | 470 | 670 |
| M24 | 3.5 | 4.5 | 28 | 31.5 | 57.5 | 25 | 24 | 51.5 | 54.3 | 236 | 259 | 522 | 758 |
| M27 | 4.5 | 5.5 | 28 | 28 | 63 | 26.5 | 27 | 59 | 65 | 236 | 271 | 546 | 782 |
| M30 | 6 | 7.5 | 33 | 33 | 70 | 30 | 30 | 64 | 77 | 245 | 316 | 636 | 881 |
| M33 | 6 | 7.5 | 33 | 40 | 70 | 30 | 33 | 67 | 77 | 245 | 316 | 636 | 881 |
| M56 | 17.5 | 22 | 56 | 66 | 125.5 | 55 | 56 | 110 | 117.5 | 322 | 421.5 | 847 | 1165 |
| M60 | 21 | 25 | 65 | 72 | 132 | 60 | 60 | 115 | 120.5 | 322 | 454.5 | 914 | 1234 |
| M64 | 25 | 32 | 65 | 77 | 143 | 65 | 64 | 132 | 127.5 | 322 | 486.5 | 978 | 1300 |
