TURNBACKLE, HOOK & HOOK

Product Description
MODELWLL(T)ADEFH±5LOPEN±20CLOSE±201/260.6812.717.512.7581521504533001/290.6812.717.512.7582281886053771/2120.6812.717.512.7583052267574535/861.02162316711521684893375/8*91.021623167122820664141···

Model：HOOK & HOOK

Date：2026-09-21

Factory：F

PRODUCTS

Products

Detailed DescriptionMessage

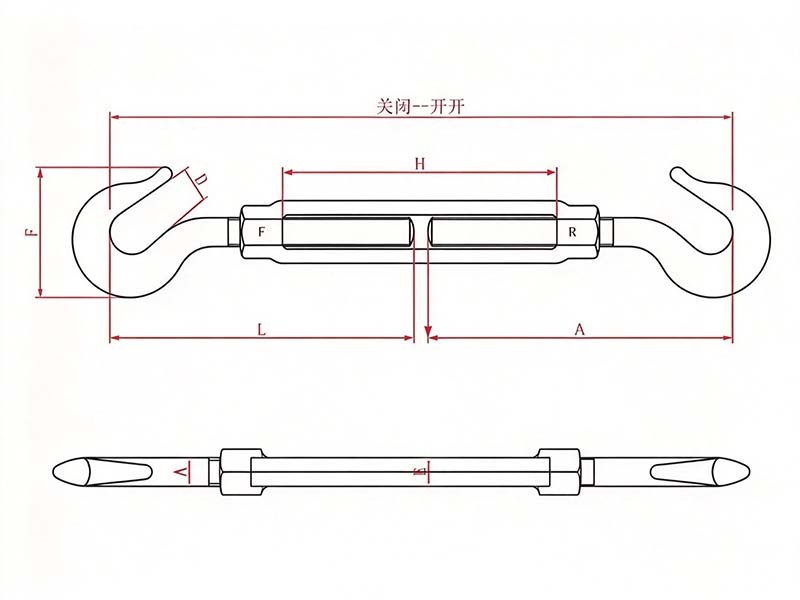

TURNBACKLE, HOOK & HOOKa.jpg

MODEL	WLL(T)	A	D	E	F	H±5	L	OPEN ±20	CLOSE ±20
1/2*6	0.68	12.7	17.5	12.7	58	152	150	453	300
1/2*9	0.68	12.7	17.5	12.7	58	228	188	605	377
1/2*12	0.68	12.7	17.5	12.7	58	305	226	757	453
5/8*6	1.02	16	23	16	71	152	168	489	337
5/8*9	1.02	16	23	16	71	228	206	641	413
5/8*12	1.02	16	23	16	71	305	245	794	490
3/4*6	1.36	19	26	19	84.5	152	189	530	378
3/4*9	1.36	19	26	19	84.5	228	227	683	454
3/4*12	1.36	19	26	19	84.5	305	265	835	531
3/4*18	1.36	19	26	19	84.5	457	342	1140	684
7/8*6	1.82	22.4	29	22.4	96	151	208	568	416
7/8*12	1.82	22.4	29	22.4	96	303	282	867	564
7/8*18	1.82	22.4	29	22.4	96	457	359	1175	718
1*6	2.27	25.4	30	25.4	108	154	224	602	448
1*12	2.27	25.4	30	25.4	108	302	300	902	600
1*18	2.27	25.4	30	25.4	108	450	376	1202	752
1*24	2.27	25.4	30	25.4	108	600	452	1504	904
1-1/4*12	2.95	32	41	32	130	305	329	963	658
1-1/4*18	2.95	32	41	32	130	452	406	1264	812
1-1/4*24	2.95	32	41	32	130	601	482	1565	964
1-1/2*12	3.4	38	51	38	146	302	367	1036	734
1-1/2*18	3.4	38	51	38	146	452	444	1340	888
1-1/2*24	3.4	38	51	38	146	600	520	1640	1040
