Product Description
MODELWORKLOADPARTSTOLERANCE±WEIGHTKGABCDFPCA1/41/2T12822.46.415.524.71.51.50.055/163/4T13.59.72681929.33.31.50.0753/81T16.711.23159.723363.31.50.1357/161-1/2T1912.736.511.226.541.43.31.50.191/22T20.3···
PRODUCTS

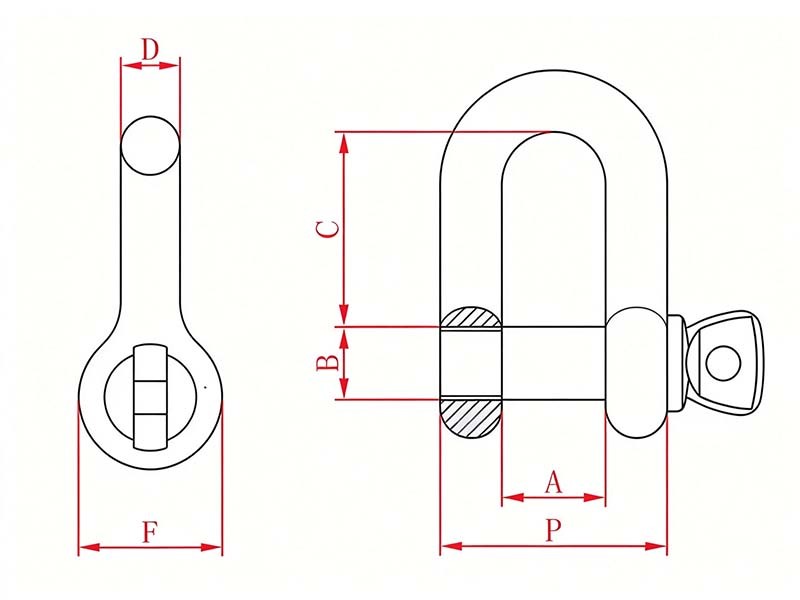

| MODEL | WORKLOAD | PARTS | TOLERANCE± | WEIGHT KG | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | F | P | C | A | |||
| 1/4 | 1/2T | 12 | 8 | 22.4 | 6.4 | 15.5 | 24.7 | 1.5 | 1.5 | 0.05 |
| 5/16 | 3/4T | 13.5 | 9.7 | 26 | 8 | 19 | 29.3 | 3.3 | 1.5 | 0.075 |
| 3/8 | 1T | 16.7 | 11.2 | 315 | 9.7 | 23 | 36 | 3.3 | 1.5 | 0.135 |
| 7/16 | 1-1/2T | 19 | 12.7 | 36.5 | 11.2 | 26.5 | 41.4 | 3.3 | 1.5 | 0.19 |
| 1/2 | 2T | 20.3 | 15.6 | 42 | 13 | 32 | 47 | 3.3 | 1.5 | 0.28 |
| 5/8 | 3-1/4T | 27 | 18.6 | 51 | 16 | 39 | 59.5+0.3 | 6.35 | 1.5 | 0.5 |
| 3/4 | 4-3/4T | 31.5 | 22 | 58 | 19 | 47 | 71 | 6.35 | 1.5 | 0.92 |
| 7/8 | 6-1/2T | 37 | 25 | 71.5 | 22.3 | 54 | 81.5 | 6.35 | 1.5 | 1.4 |
| 1 | 8-1/2 | 43 | 28 | 80 | 25.5 | 59 | 94 | 6.35 | 1.5 | 2 |
| 1-1/8 | 9-1/2T | 46 | 32 | 92 | 28.5 | 68 | 102 | 6.35 | 1.5 | 2.9 |
| 1-1/4 | 12T | 50 | 35 | 98 | 32 | 76 | 113 | 6.35 | 1.5 | 3.9 |
| 1-3/8 | 13-1/2T | 57 | 38 | 119 | 35 | 84 | 127 | 6.35 | 3.3 | 5.6 |
| 1-1/2 | 17T | 60 | 42 | 122 | 38 | 92 | 137 | 6.35 | 3.3 | 6.9 |
| 1-3/4 | 25T | 73 | 50 | 143 | 44.5 | 105 | 164 | 6.35 | 3.3 | 11.4 |
| 2 | 35T | 82 | 55 | 164 | 51 | 122 | 183+1 | 6.35 | 3.3 | 17.2 |
| 2-1/4 | 42.5T | 94 | 65 | 190 | 58 | 130 | 210 | 6.35 | 3.3 | 22.91 |
| 2-1/2 | 55T | 104 | 70 | 195 | 64 | 150 | 234 | 6.35 | 6.35 | 31.7 |
| 3 | 85T | 132 | 80 | 212 | 77 | 165 | 285 | 6.35 | 6.35 | 51.2 |
